Constant Power Load

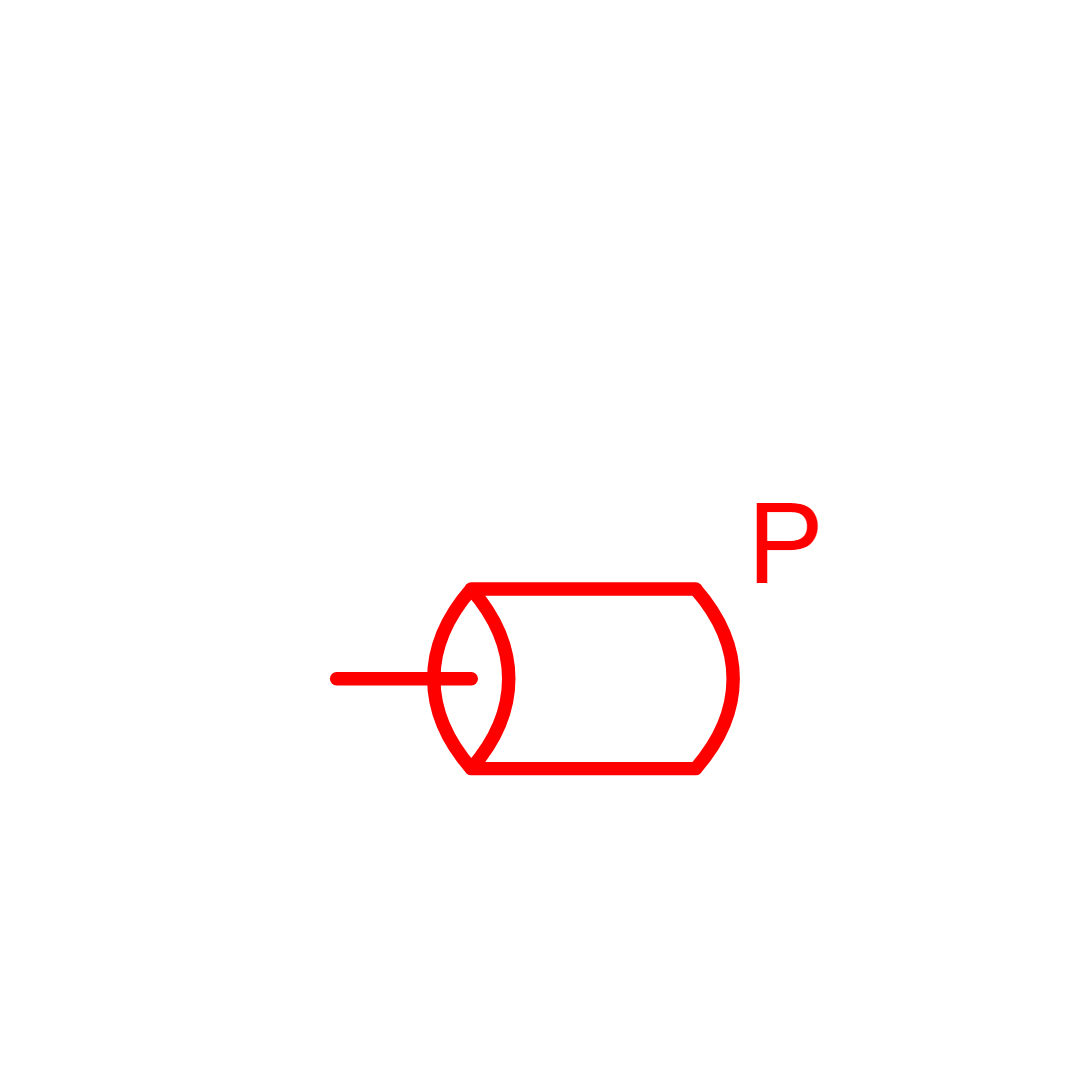

Description
Constant Power Load with torque defined by:
T = T_{max} \text{ if } \omega < \omega_{base} $$
$$ T = \frac{P}{\omega} \text{ with } P = T_{max} \cdot \omega_{base}
where \omega is the speed in rad/s.
Library
Rotational Mechanical > Loads
Parameters
| Property | Display Name | Parameter Type | Description |
|---|---|---|---|
| Tmax | Tmax - Maximal Torque [N.m] | DoubleParameter | Tmax - Maximal Torque [N.m] |
| Wbase | Wbase - Base Speed in rad/sec | DoubleParameter | Wbase - Base Speed in rad/sec |
Pins
| Property | Pin Name | Type | Description |
|---|---|---|---|
| P | R | RotationalMechanical | Rotational Mechanical Pin |
Default Size
| Width | Height |
|---|---|
| 4 | 2 |
