MMF Probe
Description

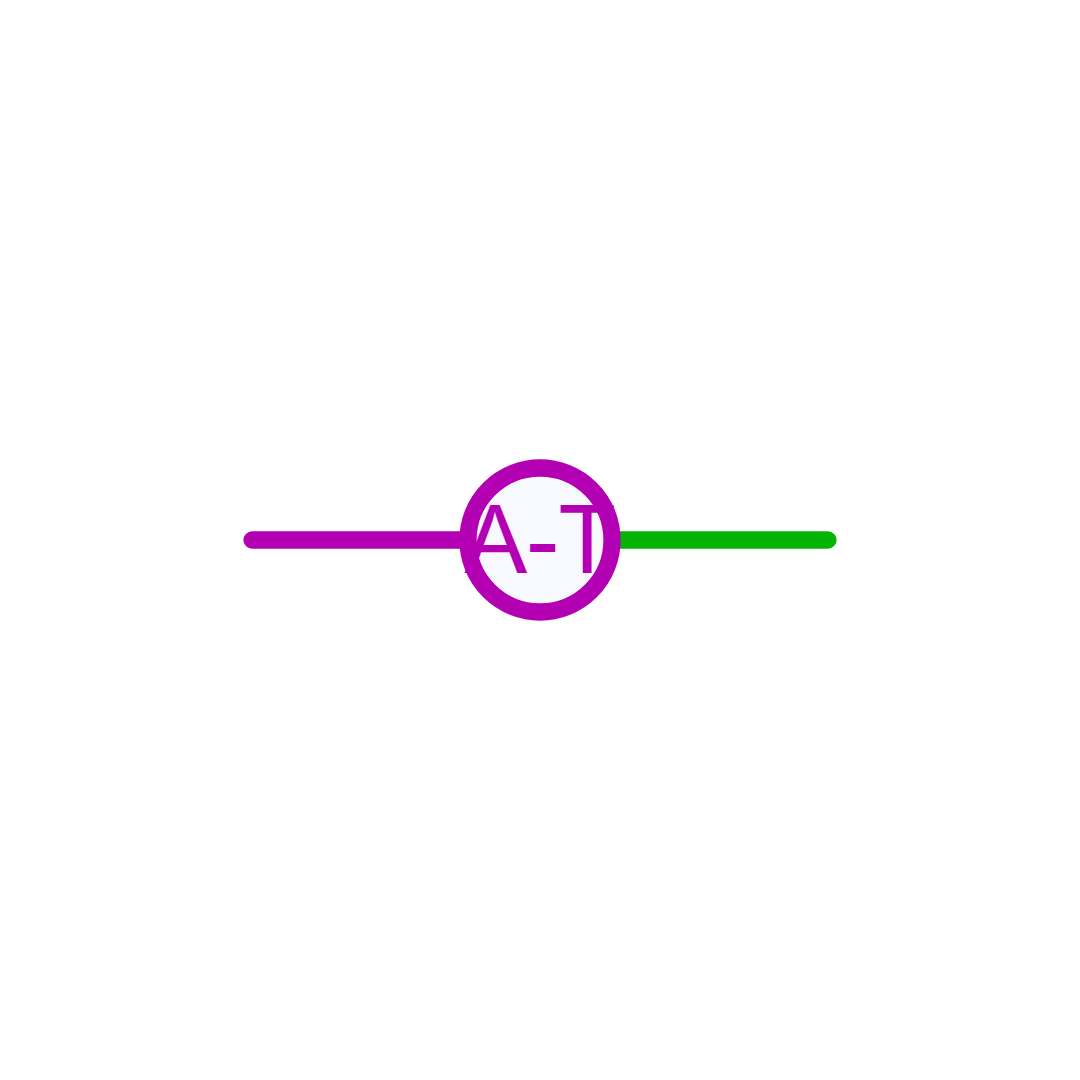

Probe that measures magnetomotive force between two magnetic nodes.
The measured MMF, in A-turn, is exposed as a control signal and can also be observed in scopes.
Library
Magnetic > Probes
Parameters
| Property | Display Name | Parameter Type | Description |
|---|---|---|---|
| SamplingTime | Sampling Time [s] | DoubleParameter | Sampling Time |
| Gain | Gain | DoubleParameter | Out = Gain * MMF[P] |
Pins
| Property | Pin Name | Type | Description |
|---|---|---|---|
| P | P | Magnetic | Measurement Pin |
| Out | Out | ControlOut | Control Output (Out = Gain * A-turn[P]) |
Default Size
| Width | Height |
|---|---|
| 4 | 2 |
