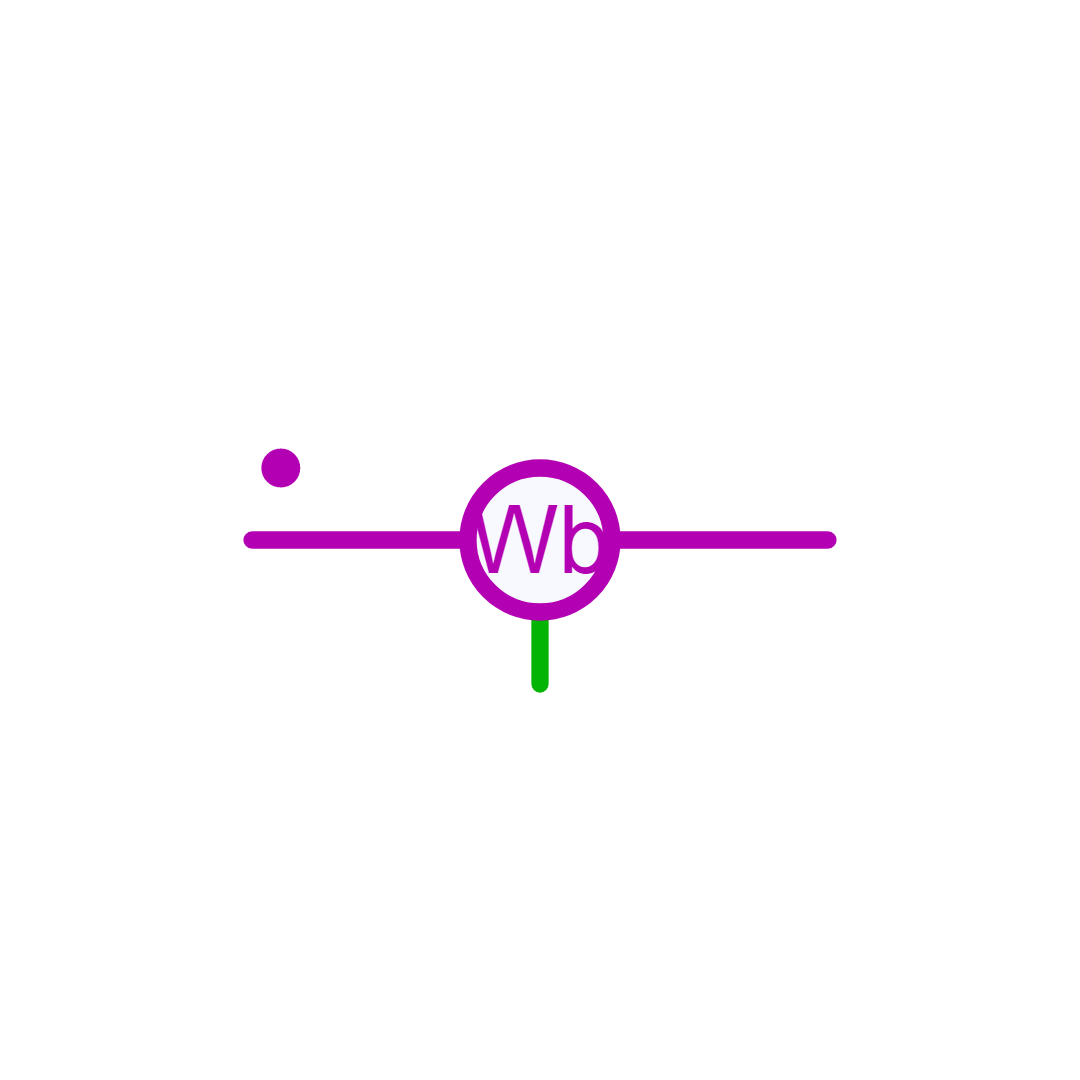

Flux Probe
Description
Measure the magnetic flux rate between two nodes (in Wb/sec). This device internally integrates the flux rate and provide the magnetic flux in Wb as a control signal.
Library
Magnetic > Probes
Parameters
| Property | Display Name | Parameter Type | Description |
|---|---|---|---|
| SamplingTime | Sampling Time [s] | DoubleParameter | Sampling Time |
| Gain | Gain | DoubleParameter | Out = Gain * Flux |
Pins
| Property | Pin Name | Type | Description |
|---|---|---|---|
| P | P | Magnetic | Positive Pin (●) |
| N | N | Magnetic | Negative Pin |
| Out | Out | ControlOut | Control Output (Out = Gain * I) |
Default Size
| Width | Height |
|---|---|
| 4 | 2 |
