Winding
Description

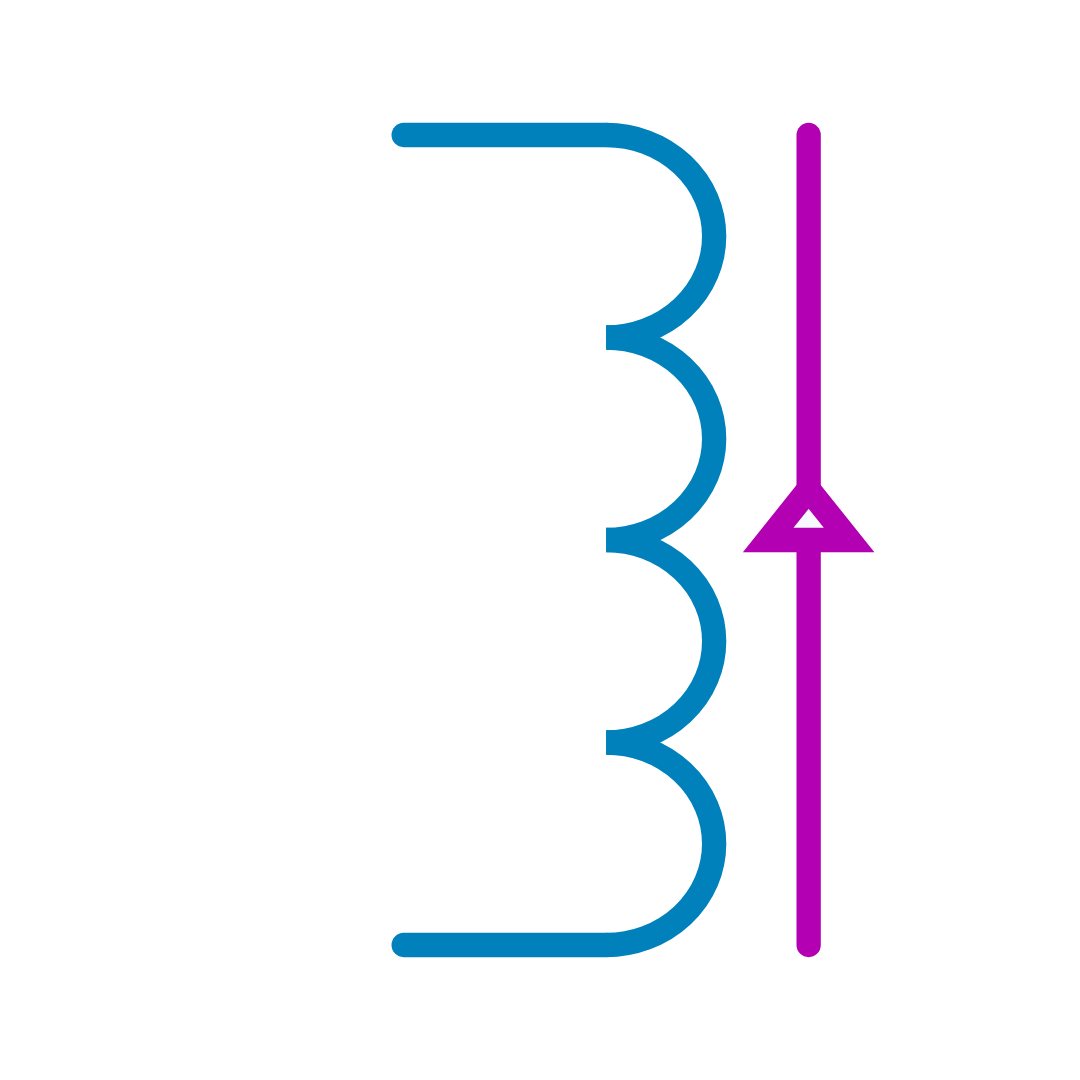

The Winding device represents an electromagnetic conversion between the electric circuit and the magnetic circuit. The current i across the eletrical nodes and the magnetomotive force \mathcal{F} induced across the magnetic nodes have following relationship.
\mathcal{F} = Ni
where N is the number of turns. Also, the voltage v across the electrical nodes and the flux \Phi across the magnetic nodes have following relationship.
v = N \frac{d\Phi}{dt}
Library
Magnetic > Branches
Parameters
| Property | Display Name | Parameter Type | Description |
|---|---|---|---|
| NumberOfTurns | Number of Turns | DoubleParameter | Number of Turns |
Pins
| Property | Pin Name | Type | Description |
|---|---|---|---|
| W1P | W1P | Electrical | Electrical, Positive Pin (1) |
| W1N | W1N | Electrical | Electrical, Negative Pin |
| W2P | W2P | Magnetic | Magnetic, Positive Pin (2) |
| W2N | W2N | Magnetic | Magnetic, Negative Pin |
Default Size
| Width | Height |
|---|---|
| 4 | 6 |
