Linear Core

Description

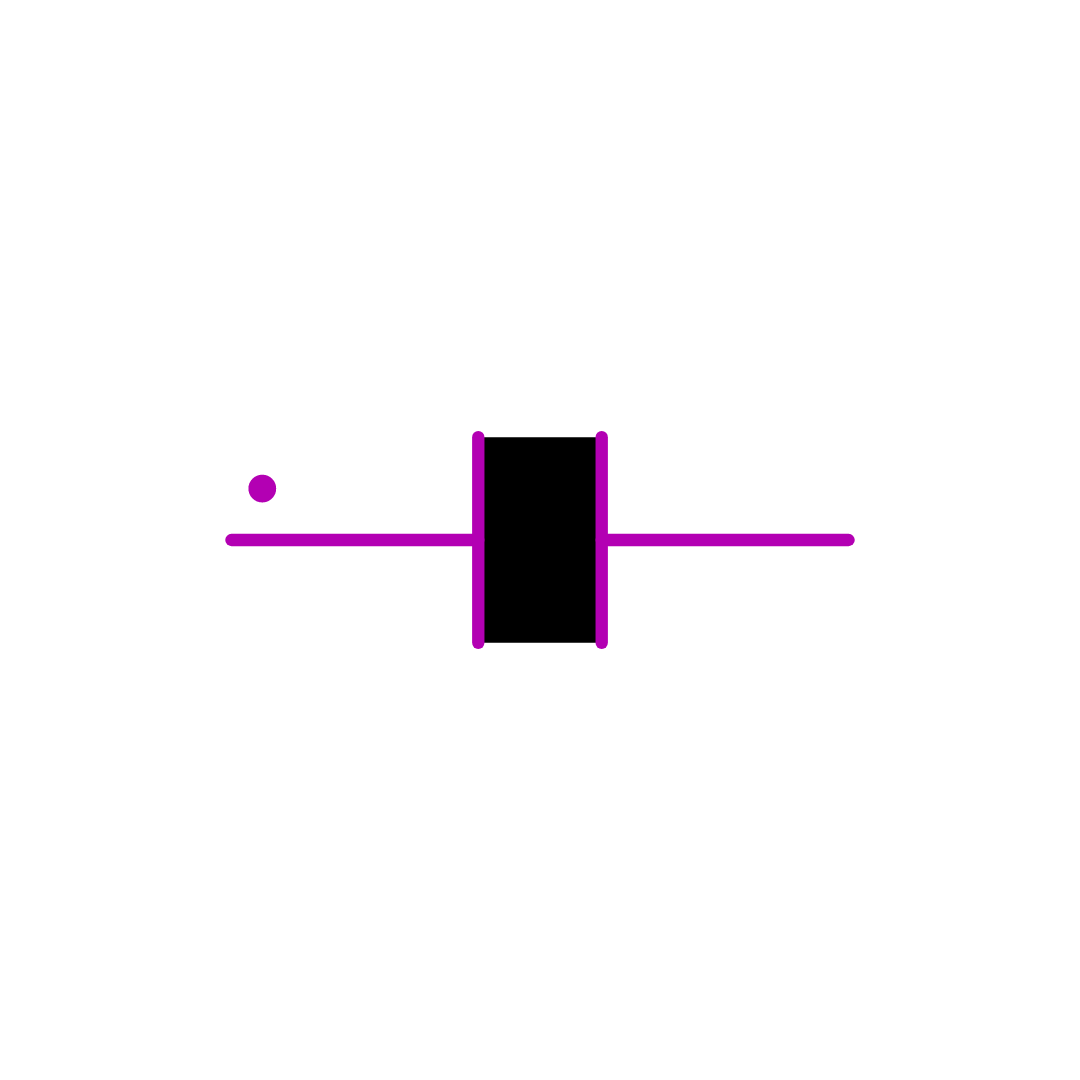

Model of an ideal linear magnetic core. It represents a linear relationship between the magnetic flux $\Phi$ and the magneto-motive force $\mathcal{F}$.

$$\frac{\Phi}{\mathcal{F}} = \frac{\mu_0 \mu A}{l}$$

where $\mu_0$ = 4π × 10−7N∕A2 is the vaccum peremeability, $\mu$ is the relative permeability of the iron core steel, and $A$ is the cross-sectional area and $l$ the length of the flux path.

Library

Magnetic > Branches

Parameters

Property	Display Name	Parameter Type	Description
RelativePermeability	Relative Permeability	DoubleParameter	RelativePermeability value
Area	Cross-sectional area [m^2]	DoubleParameter	Cross-sectional area, in m^2
Length	Length of flux path [m]	DoubleParameter	Length of flux path, in m

Pins

Property	Pin Name	Type	Description
P	P	Magnetic	Positive Pin (●)
N	N	Magnetic	Negative Pin

Default Size

Width	Height
6	2
