Air Gap
Description

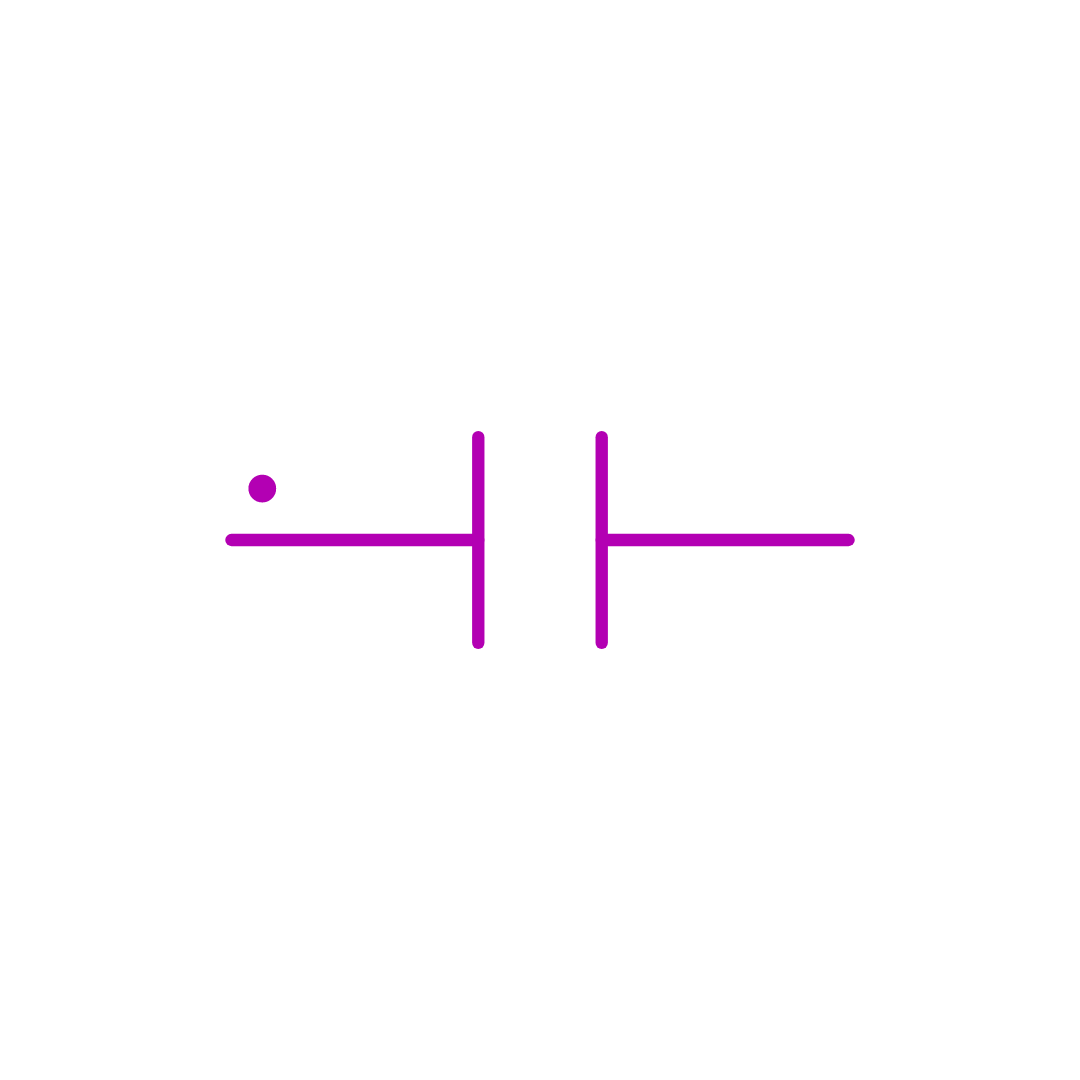

Model of an air gap in a magnetic core. It represents a linear relationship between the magnetic flux \Phi and the magneto-motive force \mathcal{F}.
\frac{\Phi}{\mathcal{F}} = \frac{\mu_0 A}{l}
where \mu_0 = 4π × 10−7N∕A2 is the vaccum peremeability, A is the cross-sectional area and l the length of the flux path.
Library
Magnetic > Branches
Parameters
| Property | Display Name | Parameter Type | Description |
|---|---|---|---|
| RelativePermeability | Relative Permeability | DoubleParameter | Relative Permeability value |
| Area | Cross-sectional area [m^2] | DoubleParameter | Cross-sectional area, in m^2 |
| Length | Length of flux path [m] | DoubleParameter | Length of flux path, in m |
Pins
| Property | Pin Name | Type | Description |
|---|---|---|---|
| P | P | Magnetic | Positive Pin (●) |
| N | N | Magnetic | Negative Pin |
Default Size
| Width | Height |
|---|---|
| 6 | 2 |
