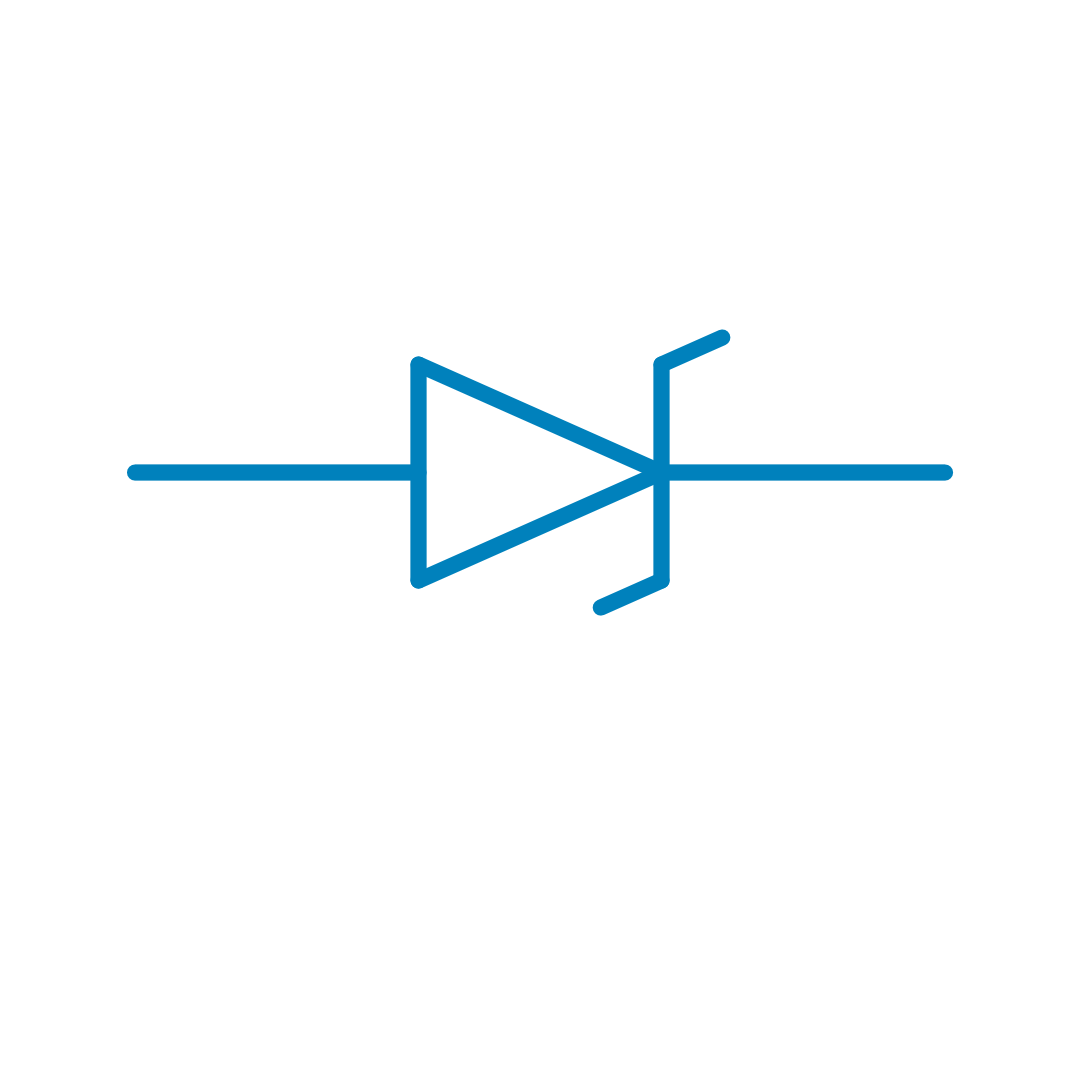

Zener Diode
Description
Ideal Zener Diode with forward voltage, on-resistance, breakdown resistance and breakdown voltage
Important
If resistances (on-resistance or breakdown resistance) are null, we use a very small value (1E-7 Ohms)
Library
Electrical > Semiconductors
Parameters
| Property | Display Name | Parameter Type | Description |
|---|---|---|---|
| Rd | Rd [Ohm] | DoubleParameter | Diode Resistance value, in Ohm |
| Vf | Forward Voltage [V] | DoubleParameter | Diode Forward Voltage, in V |
| Rbr | Rbr [Ohm] | DoubleParameter | Diode Resistance value in breakdown area, in Ohm |
| Vbr | Breakdown Voltage [V] | DoubleParameter | Diode Breakdown Voltage, in V |
Pins
| Property | Pin Name | Type | Description |
|---|---|---|---|
| Anode | Anode | Electrical | Anode |
| Cathode | Cathode | Electrical | Cathode |
Default Size
| Width | Height |
|---|---|
| 6 | 2 |
