Operational Amplifier

Description

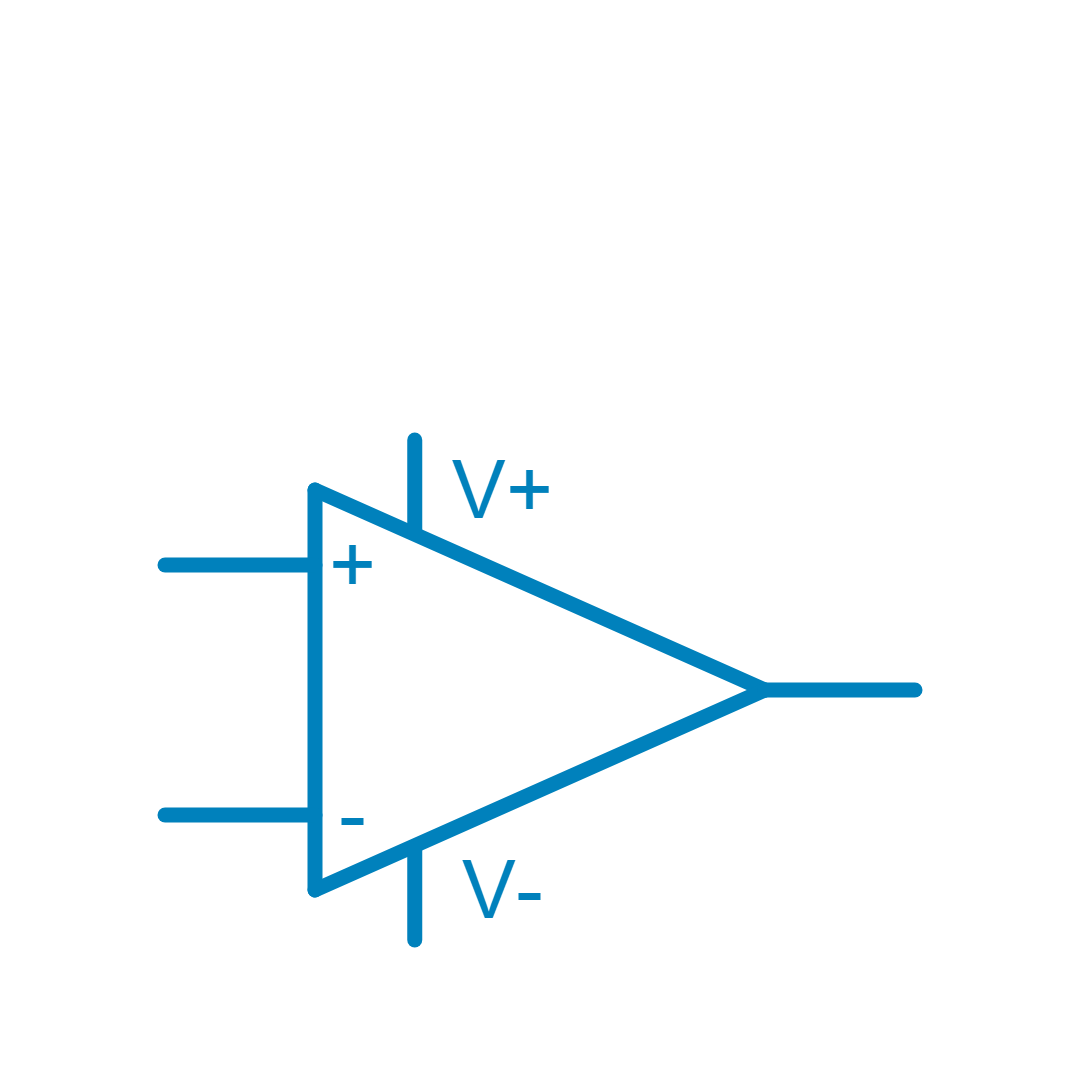

Operational Amplifier

Ideal model of an Operational Amplifier operating in power domain. Output voltage is equal to:

• Upper voltage source Vcc+ if $Vp - Vn > Vcc+$

• Lower voltage source Vcc- if $Vp - Vn < Vcc-$

• $gain * (Vp - Vn)$ in linear range.

Vcc+ and Vcc- are defined through external power sources.

Gain is equal to 100 000. No input and output resistance are included.

Library

Electrical > Semiconductors

Pins

Property	Pin Name	Type	Description
V1P	V2	Electrical	Positive Pin Vp (●)
V1N	V3	Electrical	Negative Pin Vn
VSP	V1	Electrical	Upper source pin Vcc+
VSN	V4	Electrical	Lower source pin Vcc-
V0	P	Electrical	Output

Default Size

Width	Height
6	4
