Diode with Reverse Recovery

Symbol

Description

Ideal Diode with reverse recovery effet

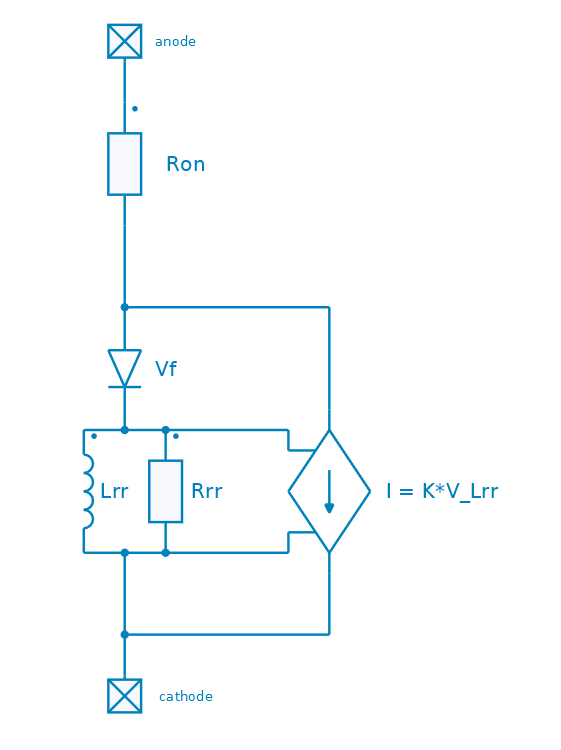

The reverse recovery effect is modeled using a Voltage Controlled Current Source as shown in the figure below.

Internal parameters of the model are calculated using the following equations:

$\tfrac{L_{rr}}{R_{rr}} = \tfrac{1}{\ln 10} * [t_{rr} - I_{rrm} / (\tfrac{dI_r}{dt})]$

$K = \tfrac{I_{rrm}}{L} * (\tfrac{dI_r}{dt})^{-1} * [1 - \exp(\tfrac{-I_{rrm}}{L * \tfrac{dI_r}{dt} * (K+1/R_{rr})})]^{-1}$

If Irrm and trr are provided (> 0.0), Qrr is ignored. If Irrm or trr is equal to 0.0, its value is derived from the following equations:

$(\tfrac{1}{2} - \tfrac{1}{\ln 10}) * (\tfrac{dI_r}{dt})^{-1} * I^2_{rrm} + \tfrac{t_{rr}}{\ln 10} * I_{rrm} - Q_{rr} = 0$

Irrm value is also checked to validate the geometric law:

$I_{rrm} < t_{rr} * \tfrac{dI_r}{dt}$

Reference: MAST Power Diode and Thyristor Models Including Automatic Parameter Extraction, Alan COURTAY, 1995

Electrical > Semiconductors

Property	Display Name	Parameter Type	Description
Ron	Ron [Ohm]	DoubleParameter	Diode Resistance value, in Ohm
Vf	Forward Voltage [V]	DoubleParameter	Diode Forward Voltage, in V
Irrm	Reverse Recovery Peak Current [A]	DoubleParameter	Diode Reverse Recovery Peak Current, in A
Trr	Reverse Recovery Time [s]	DoubleParameter	Diode Reverse Recovery Time, in s
Qrr	Reverse Recovery Charge [C]	DoubleParameter	Diode Reverse Recovery Charge, in C
DeltaIrOnDeltaT	Current slope at turn-off [A/s]	DoubleParameter	Diode Current slope at turn-off, in A/s
Lrr	Reverse Recovery Inductance [H]	DoubleParameter	Diode Reverse Recovery Inductance, in H

Property	Pin Name	Type	Description
Anode	Anode	Electrical	Anode
Cathode	Cathode	Electrical	Cathode

Width	Height
6	2
