Capacitor (Coupled)

Description

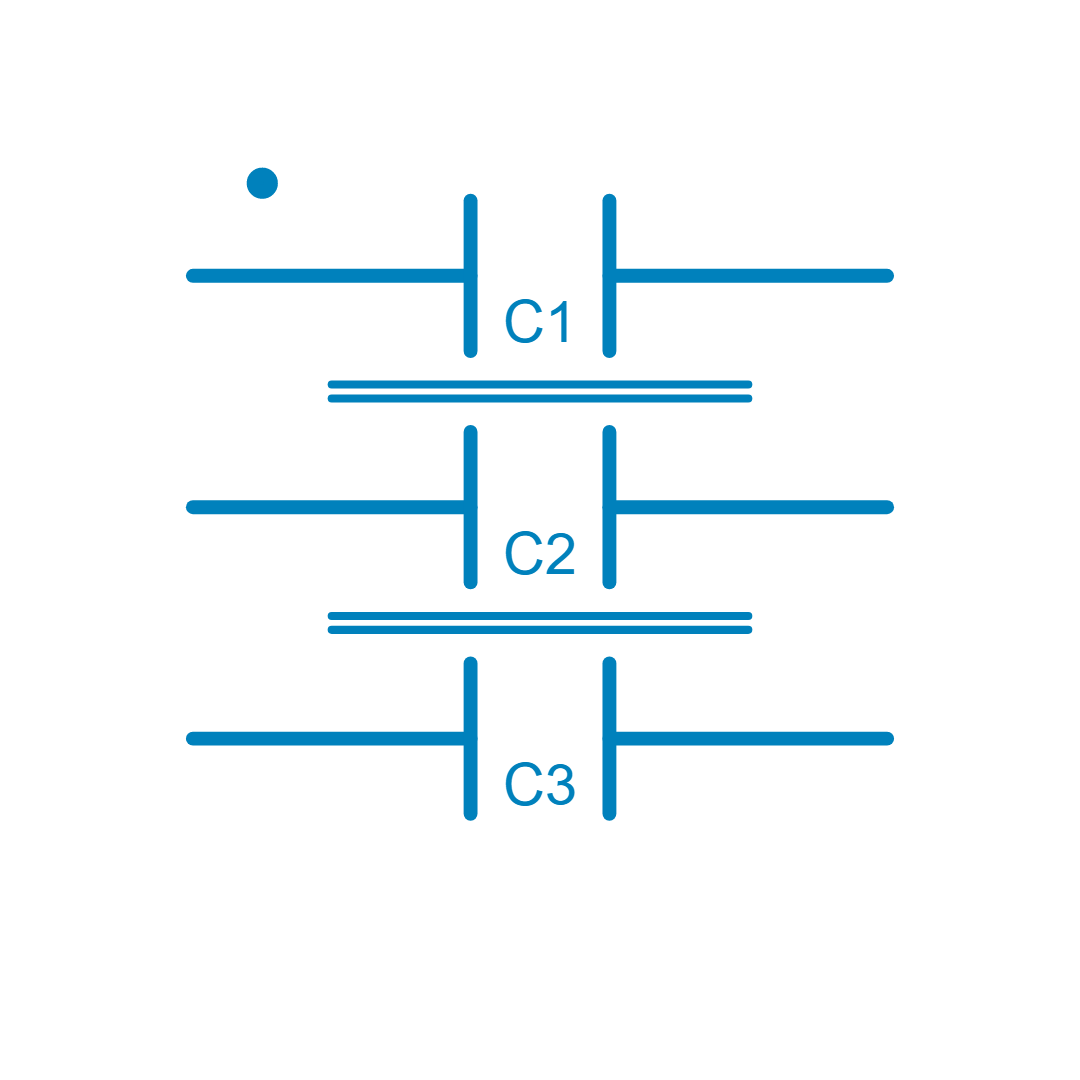

This component provides two or more capacitively coupled capacitors.

The size $n$ of the matrix corresponds to the number of capacitors. The diagonal coefficients are the self-capacitance terms and the off-diagonal coefficients are the coupling terms.

The branch currents are defined by:

$i_a = \sum_b C_{a,b}\frac{dv_b}{dt}$

where $v_b$ is the voltage from pin CbP to pin CbN.

Library

Electrical > RLC

Parameters

Property	Display Name	Parameter Type	Description
NumberOfCapacitors	Number of Capacitors	IntParameter	Number of ideal capacitors.
Capacitance	Capacitance Matrix [F]	DoubleMatrixParameter	The capacitance matrix (F). A square matrix must be entered.
Vinit	Initial voltage [V]	DoubleArrayParameter	Vector of initial capacitor voltages (V). The vector size must be equal to the number of capacitors.

Pins

Property	Pin Name	Type	Description
-	C1P	Electrical	C1P
-	C1N	Electrical	C1N
-	C2P	Electrical	C2P
-	C2N	Electrical	C2N
-	C3P	Electrical	C3P
-	C3N	Electrical	C3N

Default Size

Width	Height
6	6
