Park Transform
Description
Deprecated Park transform.
This legacy component is kept for compatibility with older designs. Use ABC to DQ0 transformations for new models.
Library
Control > Transforms
Parameters
| Property | Display Name | Parameter Type | Description |
|---|---|---|---|
| SamplingTime | Sampling Time [s] | DoubleParameter | Sampling Time |

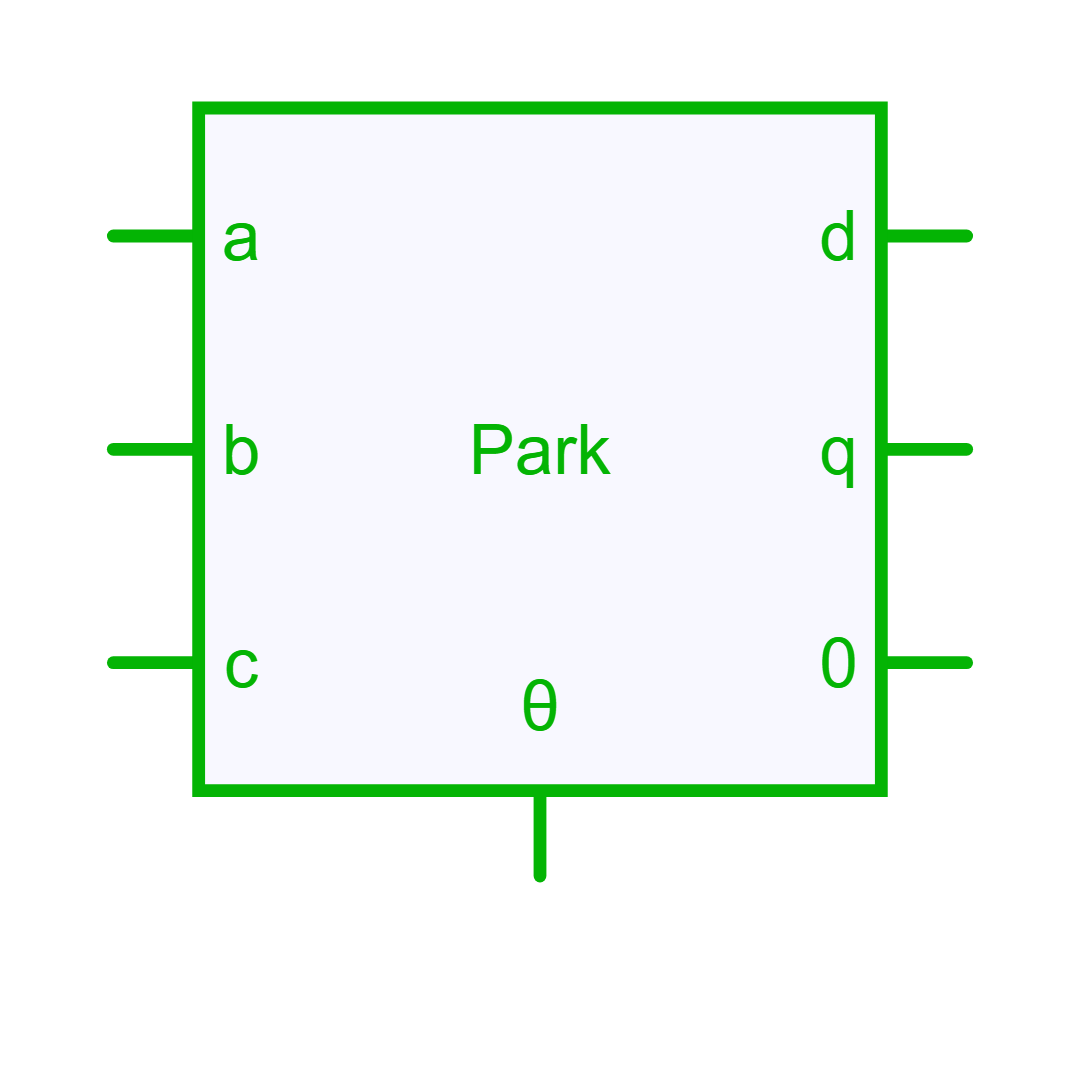

Pins
| Property | Pin Name | Type | Description |
|---|---|---|---|
| A | A | ControlIn | A |
| B | B | ControlIn | B |
| C | C | ControlIn | C |
| Angle | D | ControlOut | D |
| D | Q | ControlOut | Q |
| Q | Zero | ControlOut | Zero |
| Zero | Angle | ControlIn | Angle |
Default Size
| Width | Height |
|---|---|
| 8 | 8 |
