Control / Transforms / Inverse Park Transform
Description
Deprecated inverse Park transform.
This legacy component is kept for compatibility with older designs. Use DQ0 to ABC transformations for new models.
Library
Control > Transforms
Parameters
| Property | Display Name | Parameter Type | Description |
|---|---|---|---|
| SamplingTime | Sampling Time [s] | DoubleParameter | Sampling Time |

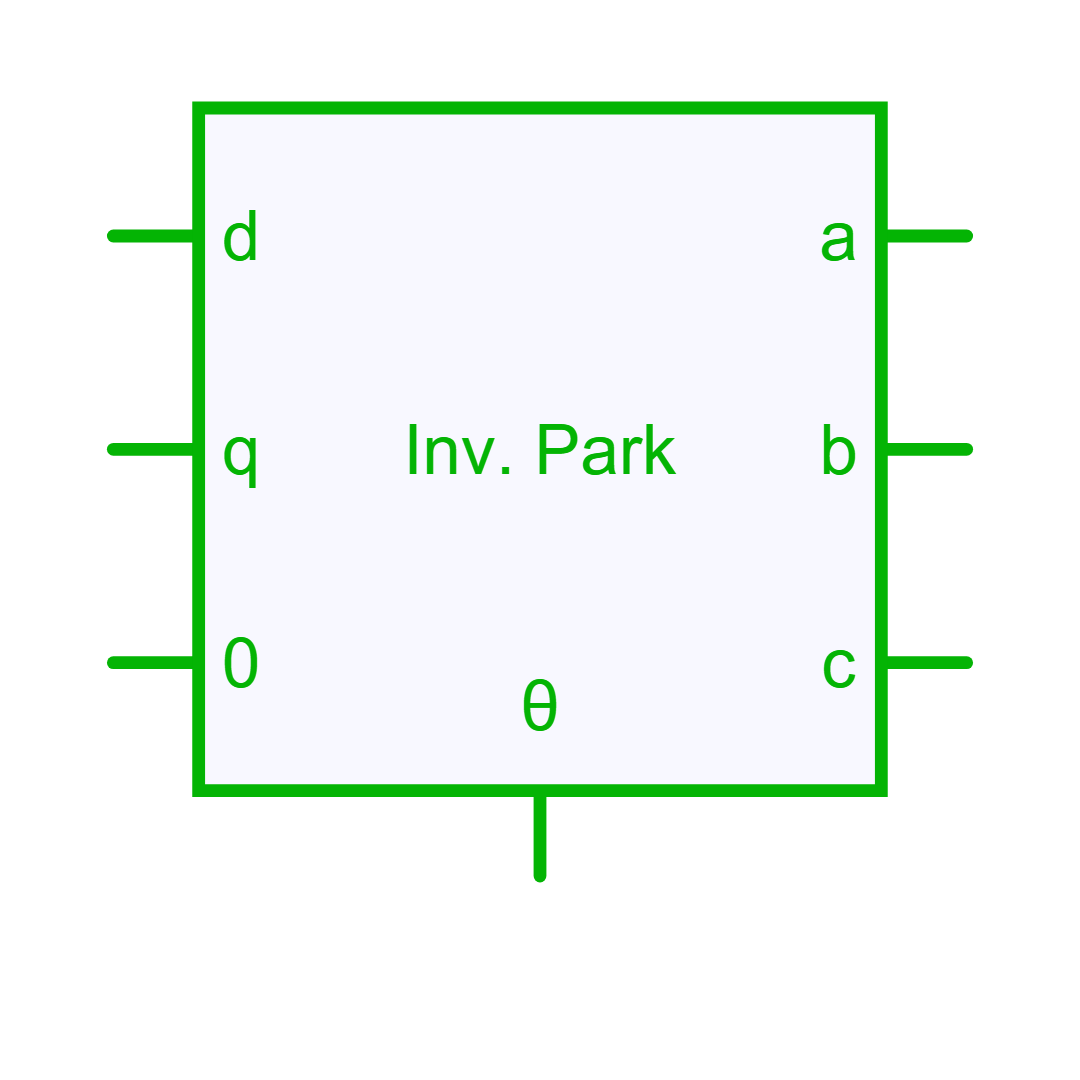

Pins
| Property | Pin Name | Type | Description |
|---|---|---|---|
| D | D | ControlIn | D |
| Q | Q | ControlIn | Q |
| Zero | Zero | ControlIn | Zero |
| A | A | ControlOut | A |
| B | B | ControlOut | B |
| C | C | ControlOut | C |
| Angle | Angle | ControlIn | Angle |
Default Size
| Width | Height |
|---|---|
| 8 | 8 |
