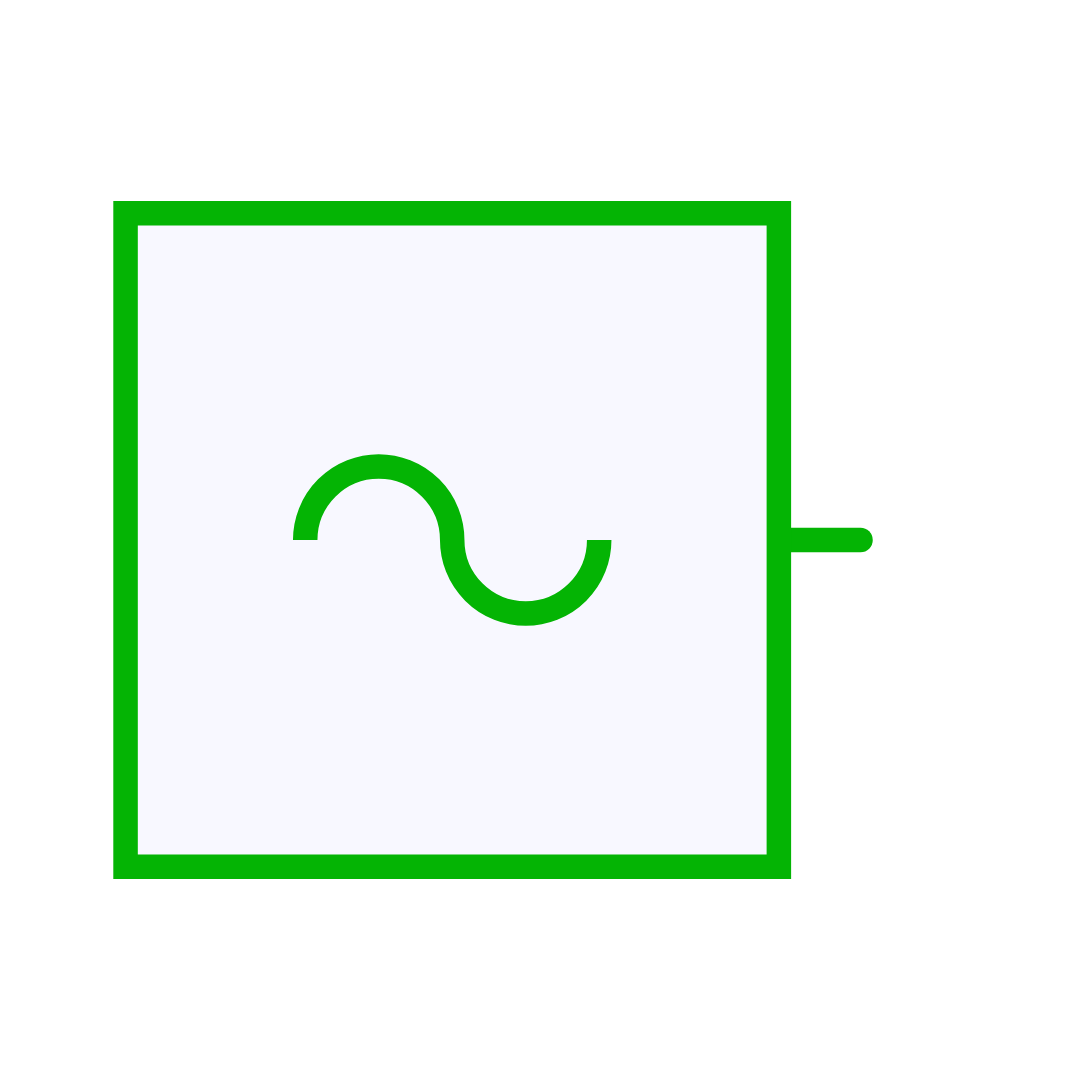

Sine Wave
Description
Sinusoidal control signal source.
The output is defined by:
y = Offset + Amplitude \cdot \sin(2\pi \cdot Frequency \cdot t + Phase)
Library
Control > Sources
Parameters
| Property | Display Name | Parameter Type | Description |
|---|---|---|---|
| Amplitude | Amplitude | DoubleParameter | Amplitude |
| Frequency | Frequency (Hz) | DoubleParameter | Signal Frequency (Hz) |
| Offset | Offset | DoubleParameter | Offset |
| PhaseShift | Phase shift [0-360] | DoubleParameter | Phase shift [0-360] |
| SamplingTime | Sampling Time [s] | DoubleParameter | Sampling Time |
Pins
| Property | Pin Name | Type | Description |
|---|---|---|---|
| Out | Out | ControlOut | Output |
Default Size
| Width | Height |
|---|---|
| 4 | 4 |
