Ramp
Description

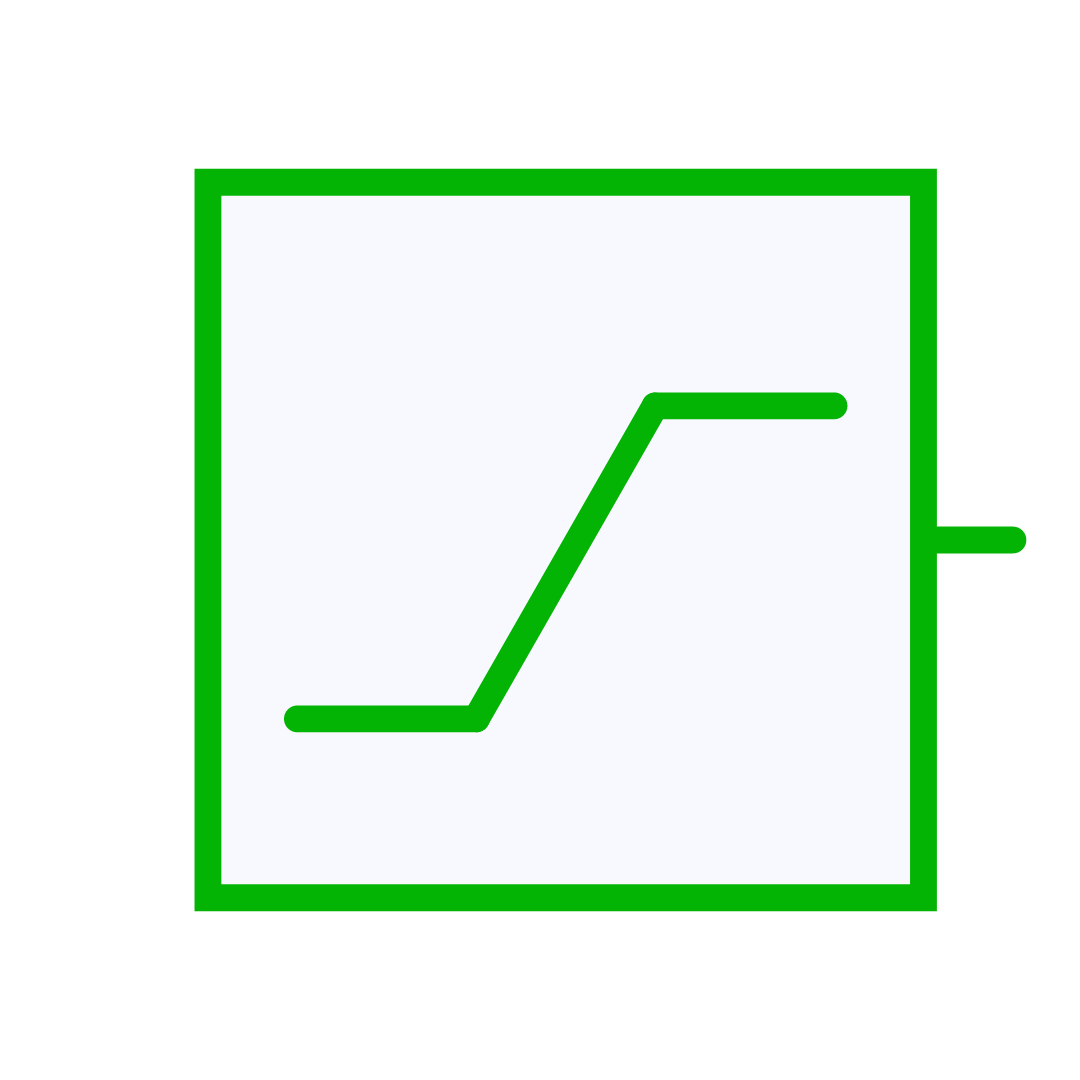

Ramp Control Signal Source.
Generates a continuous control signal that holds the initial output until the start time, increases at the configured slope between the start and end times, and maintains the final value afterwards.
Library
Control > Sources
Parameters
| Property | Display Name | Parameter Type | Description |
|---|---|---|---|
| Tstart | Start Time [s] | DoubleParameter | Time when the ramp starts rising (s). |
| Tend | End Time [s] | DoubleParameter | Time when the ramp stops changing (s). |
| Slope | Slope [unit/s] | DoubleParameter | Slope of the ramp (output change per second). |
| InitialOutput | Initial Output | DoubleParameter | Output value held before the ramp starts. |
| SamplingTime | Sampling Time [s] | DoubleParameter | Sampling Time |
Pins
| Property | Pin Name | Type | Description |
|---|---|---|---|
| Out | Out | ControlOut | Output |
Default Size
| Width | Height |
|---|---|
| 4 | 4 |
