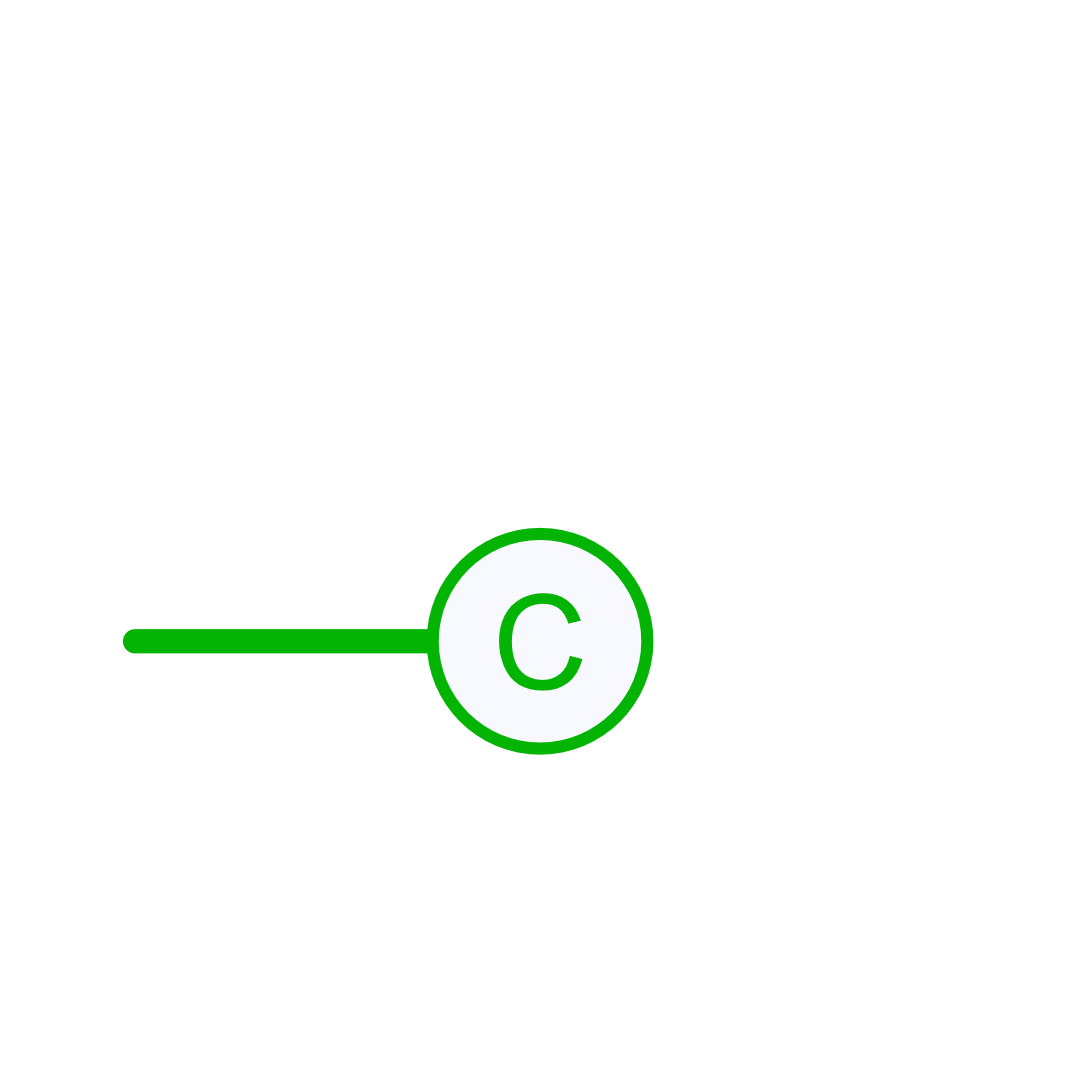

Control Scope
Description
Control-domain scope input.
Use this component to expose a control signal in simulation results without changing the signal value.
Library
Control > Probes
Parameters
| Property | Display Name | Parameter Type | Description |
|---|---|---|---|
| SamplingTime | Sampling Time [s] | DoubleParameter | Sampling Time |
Pins
| Property | Pin Name | Type | Description |
|---|---|---|---|
| In | In | ControlIn | Input Pin |
Default Size
| Width | Height |
|---|---|
| 4 | 2 |
