Control / Continous / PID

Symbol

Description

Continuous Proportional-Integral-Derivative (PID) Controller defined as:

K_p + \frac{K_i}{s} + K_d \cdot s

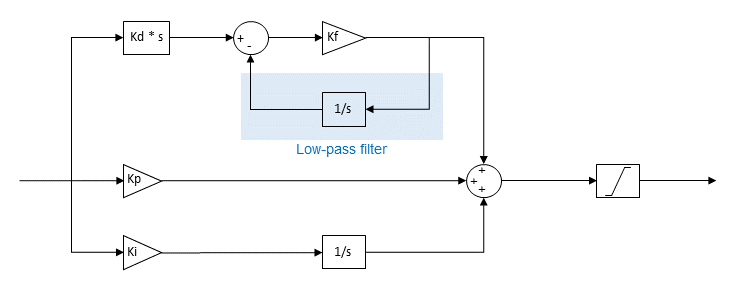

Derivative function: A first-order low-pass filter can be applied to the derivative term to reduce noise and prevent instability. Set Kf > 0 to enable the filter.The equivalent filter time constant is:

T_f = \frac{1}{K_f}


Output saturation: The parameters Umin and Umax define the lower and upper limits of the controller output. The Saturation method selects how these limits are applied: * "No saturation": no output saturation is applied and Umin/Umax are set to -inf/inf. * "Internal": the PID clamps its output between Umin and Umax. * "External": the PID publishes its raw output and the Sat input receives the feedback from an external saturator. The anti-windup uses the Sat value from the previous simulation step, which prevents an algebraic loop with that saturator.

When saturation occurs, an anti-windup mechanism can be applied to the integral term. Three modes are available:

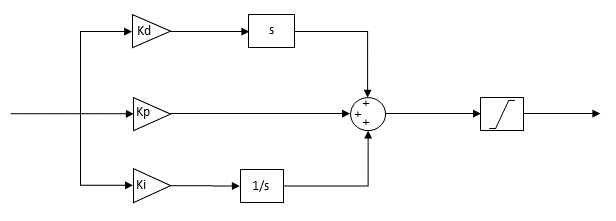

  • "NoAntiWindup": Disables the anti-windup mechanism. The integrator continues to accumulate during saturation, which may cause a delay before the output desaturates.

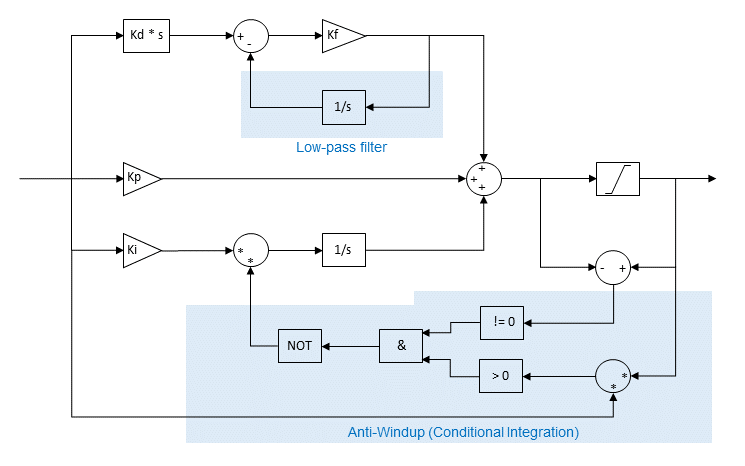

  • "ConditionalIntegration": Activates a conditional anti-windup method. When the PID output is saturated and the integrator is increasing the gap (positive error (e) and high saturation or negative error (e) and low saturation), the integrator is instantly frozen.

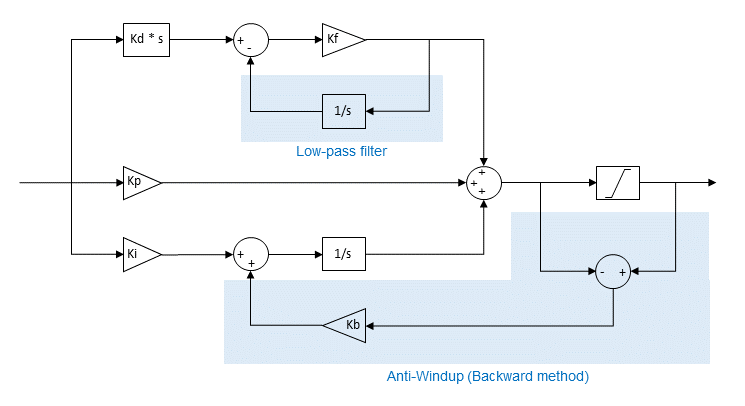

  • "BackCalculation": Activates a feedback correction loop on the integrator. When the PID output saturates, a feedback signal adjusts the integral term to reduce windup. The loop gain Kb defines the speed of this correction.

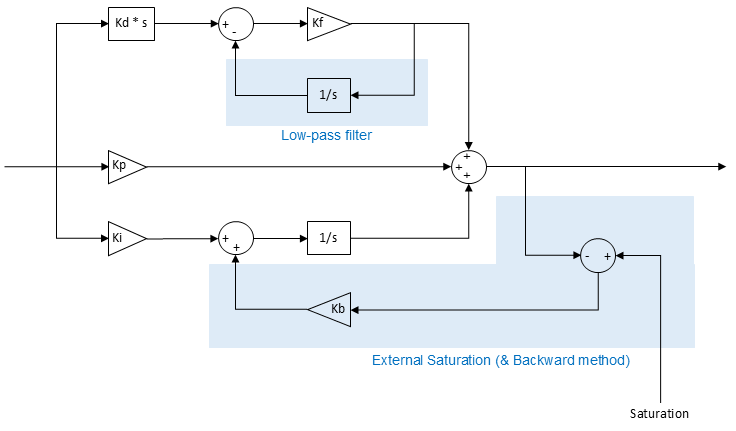

Here is the internal structure of the PID controller with the external saturation and back-calculation anti-windup:


Library

Control > Continous

Parameters

Property Display Name Parameter Type Description
Kp Kp DoubleParameter Proportional gain
Ki Ki DoubleParameter Integral gain
Kd Kd DoubleParameter Derivative gain
Umin Umin DoubleParameter Minimal saturation
Umax Umax DoubleParameter Maximal saturation
Kb Kb DoubleParameter Antiwindup correction factor
SamplingTime Sampling Time [s] DoubleParameter Sampling Time
Iinit Iinit DoubleParameter Initial integral contribution
IntegrationMethod Anti-Windup Integration method PIDIntegrationMethodParameter Integration method
Kf Kf DoubleParameter Derivative low-pass filter gain
SaturationMethod Saturation PIDSaturationMethodParameter Saturation method

Pins

Property Pin Name Type Description
In In ControlIn Input
Out Out ControlOut Output

Default Size

Width Height
8 4
