DQ0 to ABC Transformation (voltage source)
Description
Performs the inverse Park transformation (DQ0 to ABC) in the power domain (using Voltage sources).
The transformation from the rotating reference frame to phase quantities calculated as
\begin{bmatrix} a\\ b\\ c \end{bmatrix} = \begin{bmatrix} \cos (\Theta ) & -\sin (\Theta ) & 1 \\ \cos (\Theta - \frac{2\pi}{3})& -\sin (\Theta - \frac{2\pi}{3}) & 1 \\ \\ \cos (\Theta + \frac{2\pi}{3}) & -\sin (\Theta + \frac{2\pi}{3}) & 1\end{bmatrix} \cdot \begin{bmatrix} d\\ q\\ 0 \end{bmatrix}
Library
Electrical > Transformers

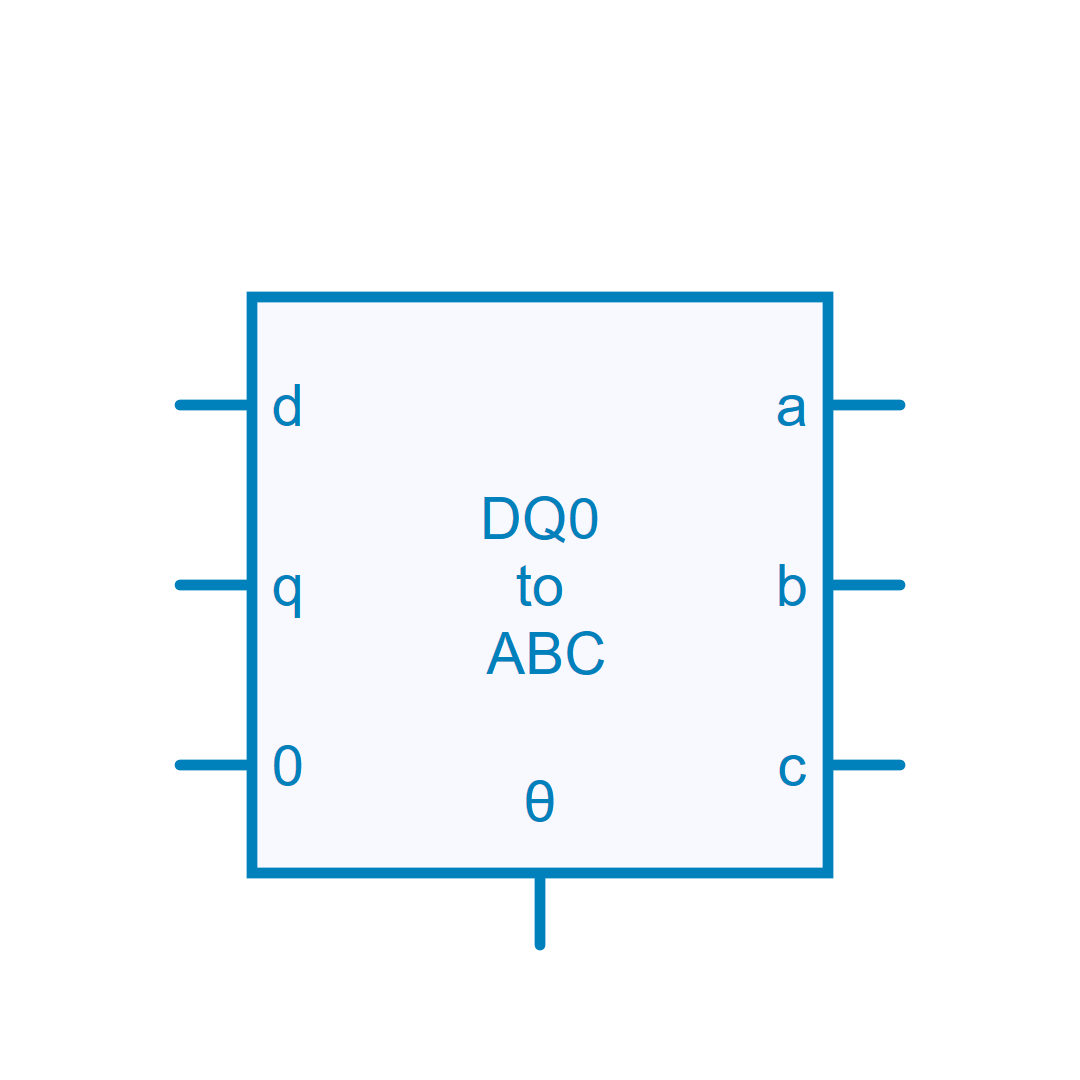

Pins
| Name | Description |
|---|---|
| D | Voltage Vd |
| Q | Voltage Vq |
| Zero | Voltage V0 |
| A | Voltage Va |
| B | Voltage Vb |
| C | Voltage Vc |
| Theta | Angle input signal [Rad] as a voltage |
